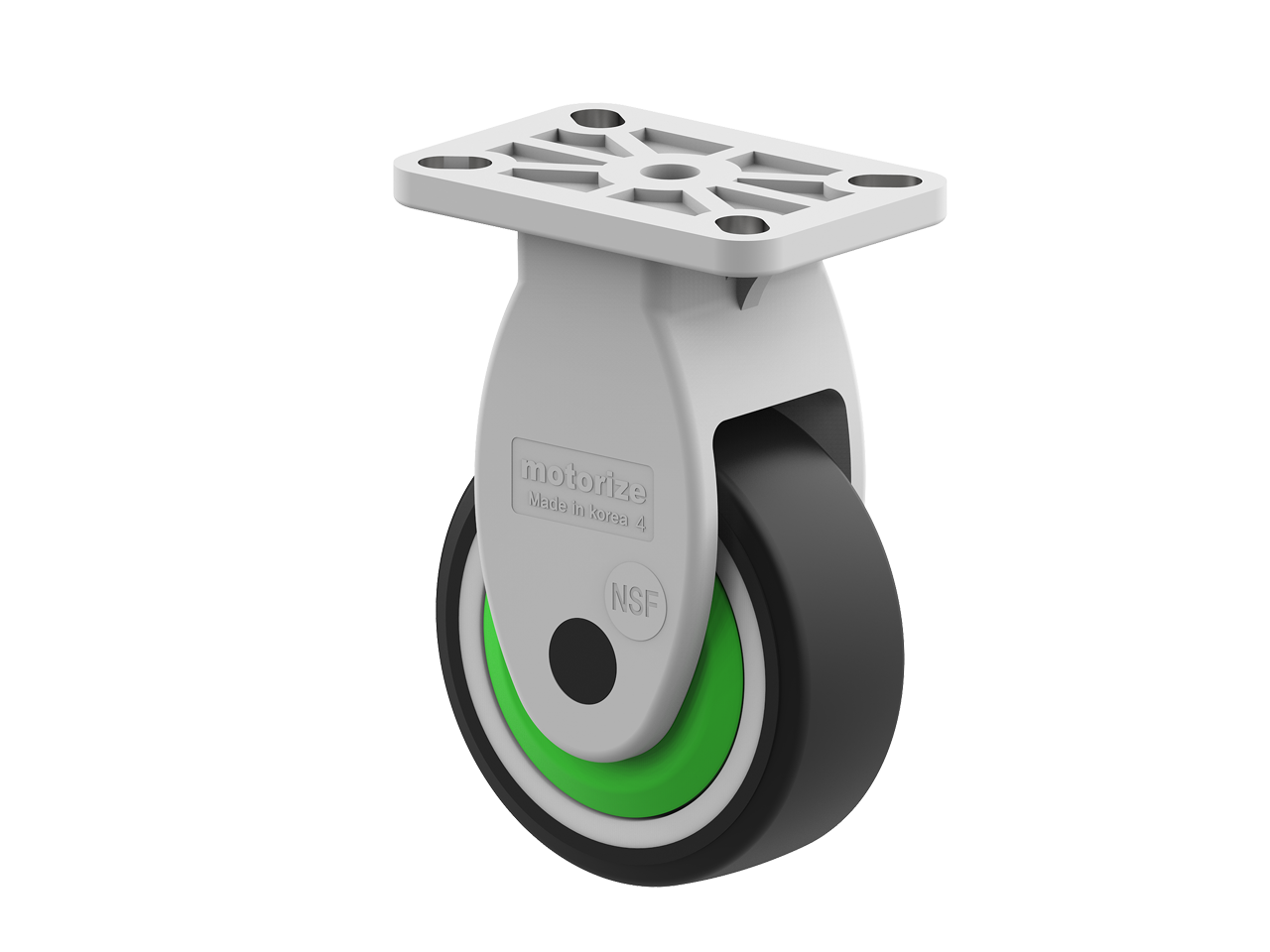

MMS-R
Rigid tcaster
NAVIGATION
INFORMATION
| Model | Wheel size(mm) | Total height(mm) | Wheel width(mm) | Load capacity(kg) | Plate size(mm) | Bolt hole space(mm) |
|---|---|---|---|---|---|---|
| MMS-R3 | 75 | 124 | 32 | 70 | 100×68 | 72×42 80×48 |
| MMS-R4 | 100 | 147 | 37 | 130 | 100×68 | 72×42 80×48 |
| MMS-R5 | 125 | 178 | 45 | 180 | 110×100 | 75×65 85×75 |
| MMS-R6 | 150 | 204 | 50 | 250 | 110×100 | 75×65 85×75 |
