MMSC

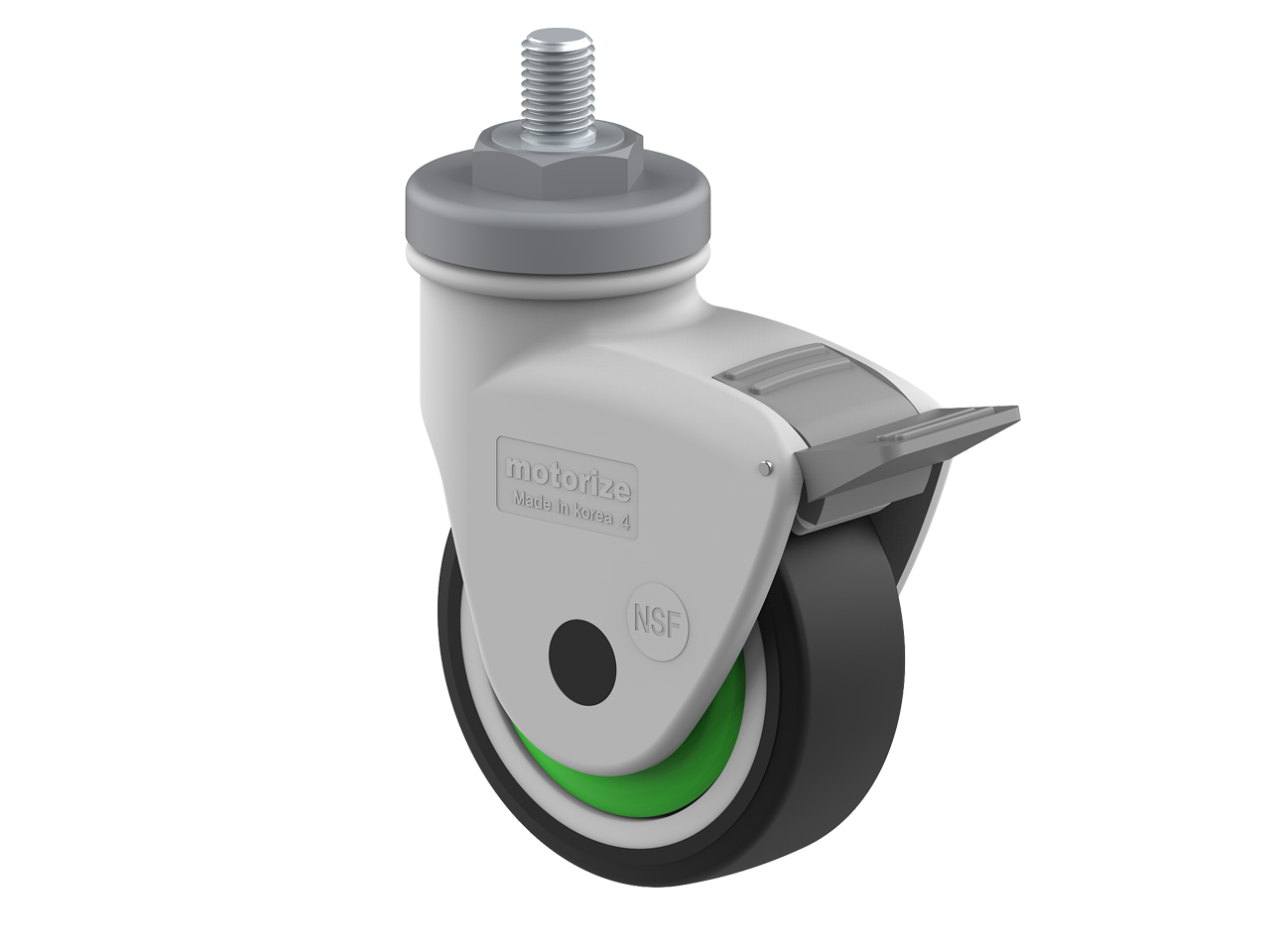

Screw Swivel caster with lock
NAVIGATION
INFORMATION
| Model | Wheel size(mm) | Total height(mm) | Wheel width(mm) | Load capacity(kg) | Bolt thickness(In) |
|---|---|---|---|---|---|
| MMSC-3 | 75 | 124 | 32 | 70 | 5/8 , L : 20mm |
| MMSC-4 | 100 | 147 | 37 | 130 | 5/8 , L : 20mm |
| MMSC-5 | 125 | 178 | 45 | 180 | 5/8 , L : 20mm |
| MMSC-6 | 150 | 204 | 50 | 250 | 5/8 , L : 20mm |
